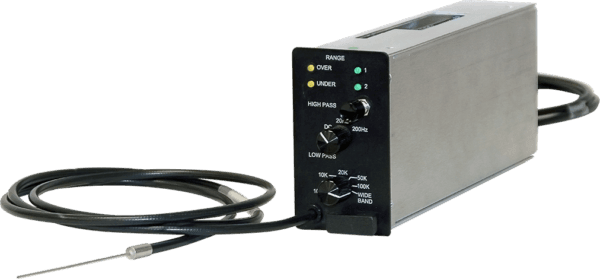

MTI Instruments光纖Fotonic插件模塊

發布時間：2021-05-20 17:20:54 瀏覽：1169

MTIInstruments光纖Fotonic插件模塊適用于精確測量動態性邊緣位置、位移和振動，工作頻率高達500khz。它具備適用于納米技術運動和振動的敏銳光纖精確測量傳感器.

MTIInstruments光纖Fotonic插件模塊可在高達500kHz的工作頻率下精確測量動態性邊緣位置、位移和振動。獨具特色的光纖探頭設計能夠滿足不同的目標反射率或樣式，特別適合各種各樣應用領域，如超聲波喇叭振動或壓電材料研究.

伴隨著探頭到目標的距離增大，接收光纖將按比例獲取越來越多的光。結果是一個非常敏感的線性輸出響應。探針間隙的不斷增大將成比例地降低接收的光量，因此產生敏銳的線性輸出響應和較大的檢測范圍和隔離距離。

深圳市立維創展科技有限公司，優勢直接渠道提供MTI Instruments訂貨服務，歡迎咨詢。

詳情了解MTI Instruments 請點擊：/brand/70.html

或聯系我們的銷售工程師：0755-83642657 QQ: 2295048674


P/N	Model	Measurement Range	Stand-Off	Resolution	Type	Frequency Response
8500-1011	Plug-in Module: MTI-2020R	0.102mm (4mils) – 0.305mm (12mils)	0.127mm (5mils) – 0.508mm (20mils)	0.01μm (1μin) – 0.1μm (1μin)	Fiber Optic Module	120kHz
8500-1012	Plug-in Module: MTI-2032R	0.127mm (5mils) – 1.016mm (40mils)	0.127mm (5mils) – 0.889mm (35mils)	0.01μm (1μin) – 0.1μm (1μin)	Fiber Optic Module	120kHz
8500-1013	Plug-in Module: MTI-2047R	0.127mm (5mils) – 1.016mm (40mils)	0.127mm (5mils) – 1.118mm (44mils)	0.01μm (1μin) – 0.1μm (1μin)	Fiber Optic Module	130kHz
8500-1014	Plug-in Module: MTI-2062R	0.152mm (6mils) – 1.524mm (60mils)	0.127mm (5mils) – 1.778mm (70mils)	0.01μm (1μin) – 0.1μm (1μin)	Fiber Optic Module	150kHz
8500-1015	Plug-in Module: MTI-2062H	0.762mm (30mils) – 1.905mm (75mils)	0.762mm (30mils) – 3.81mm (150mils)	0.01μm (1μin) – 0.1μm (1μin)	Fiber Optic Module	150kHz
8500-1016	Plug-in Module: MTI-2125R	0.152mm (6mils) – 3.556mm (140mils)	0.178mm (7mils) – 3.048mm (120mils)	0.01μm (1μin) – 0.1μm (1μin)	Fiber Optic Module	190 kHz
8500-1017	Plug-in Module: MTI-2125H	1.778mm (70mils) – 4.445mm (175mils)	1.27mm (50mils) – 7.62mm (300mils)	0.01μm (1μin) – 0.1μm (1μin)	Fiber Optic Module	150kHz
8500-1018	Plug-in Module: MTI-2125CTI	0.508mm (20mils) – 3.556mm (140mils)	0.762mm (30mils) – 5.588mm (220mils)	0.01μm (1μin) – 0.1μm (1μin)	Fiber Optic Module	150kHz
8500-1019	Plug-in Module: MTI-2032RX High Resolution	0.036mm (1.4mils) – 4.445mm (175mils)	0.038mm (1.5mils)	0.01μm (1μin) – 0.1μm (1μin)	Fiber Optic Module	100kHz
8000-4237	Plug-in Module: MTI-RC200	2.54mm (100mils)	2.54mm (100mils)	0.01μm (1μin) – 0.1μm (1μin)	Fiber Optic Module	100kHz
8500-1020	Plug-in Module: MTI-2047E	0.127mm (5mils) – 0.051mm (2mils)			Fiber Optic Module	100kHz
8500-1021	Plug-in Module: MTI-2062E	0.191mm (7.5mils) – 0.061mm (2.4mils)			Fiber Optic Module	100kHz
